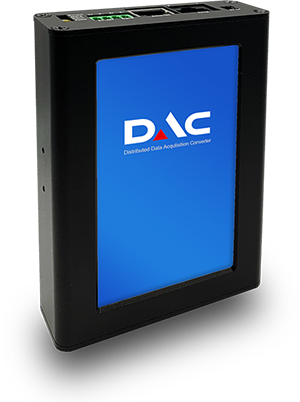

DAC-Standard

FAB IOT 最佳解決方案
The Optimal IoT Solution for FAB Environments

系統搭載分散式資料擷取轉換器,可透過 Ethernet、RS232/422/485 以及 ADC 類比輸入,擷取各類現數據。
The system adopts a Distributed Data Acquisition Converter that collects field data via Ethernet, RS232/422/485 interfaces, and analog-to-digital converters (ADC).

內建即時處理功能,能將資料轉換成標準通訊格式,並上傳至後端平台或 SCADA 系統,讓資料整合更高效,監控管理更便利。
With real-time data processing capabilities, the system converts the acquired data into standardized communication formats and uploads it to a backend platform or SCADA system for efficient integration and monitoring.

了解更多規格 | View Specifications
觸控人機 | Intuitive Touch HMI
4吋直覺式觸摸操作,不需藉助額外設備,快捷便利設定/瀏覽/故障排除一步到位。
4-inch capacitive touchscreen enables intuitive operation without the need for external devices. Fast and convenient setup, monitoring, and troubleshooting—all at your fingertips.
多樣通訊介面 | Versatile Standard Communication Interfaces
Ethernet, RS232/422/485, CAN bus, Wifi mesh, BT mesh, ADC
超節能 | Ultra Energy Efficient
業界1級省電低碳排,運行僅 1.4 W,長時間運行環保省電省荷包。
Leading the industry in power savings—only 1.4 W power consumption. Low carbon footprint, eco-friendly, and cost-saving for long-term operation.
智能備援 | Smart Redundancy
業界首創1對1 雙備援機制,拒絕等待模組停機換修。線上運行永不間斷。
Industry-first 1-to-1 dual redundancy mechanism ensures uninterrupted operation—no waiting for module replacements or shutdowns.
不斷電 | Uninterruptible Power
內建 UPS,無懼外部供電異常,全年無休確保運行。
Built-in UPS protects against external power anomalies, ensuring 24/7 continuous operation throughout the year.
離線保存 | Offline Data Retention
保存多達 30 天,確保數據絕不丟失。
Stores data for up to 30 days, ensuring no data loss even during network interruptions.
內建多樣設備驅動 | Built-in Multi-Device Driver Support
已支援設備種類多達230+以上,不需設定隨插即用。
Over 230 device types supported out-of-the-box—true plug-and-play without complex setup.
多元標準通訊協定 | Versatile Standard Communication Protocols
SECS-II / HSMS, Modbus TCP / RTU / ASCII , MQTT , MS-SQL , MySQL , Web API , FTP
工業規範 | Industrial Grade Compliance
工業規格設計製造,經 BSMI、CE 認證,外殼阻燃材質、無風扇式設計,不產生 particle,確保在嚴苛環境中長時間運行與安全。
Built to industrial standards with BSMI and CE certifications. Fanless design with flame-retardant housing ensures particle-free operation and long-term reliability in harsh environments.
產品規格 | SPECIFICATIONS
DAC-STANDARD DETAILS

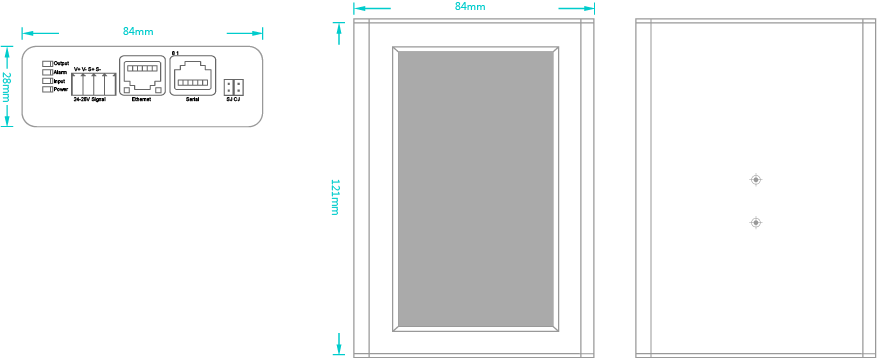

規格圖
產品名稱 分散式資料擷取轉換器
Product Name Distributed Data Acquisition Converter
型號 Model DAC-Standard
Dimension (mm) W84   H121   D28
Weight (g) 246
Input voltage (DC-V) 24 ~ 48
Operating (W) 2.14
Rated power (W) 3
UPS * > 2 hour
Display built-in
Data retention (day) 8
Power port 2 Pin
Ethernet RJ45
RS port RJ45
ADC module* support
LAN mode <= 40
Wireless mode <= 40
Mounting Accessories DIN rail / Aluminum rail / Wall-mount bracket / Magnetic mount
Customized* support
Drivers * > 230
Warranty(year) 1

* Options (選配項目)

應用場景 | APPLICATIONS
SOLUTIONS IN ACTION

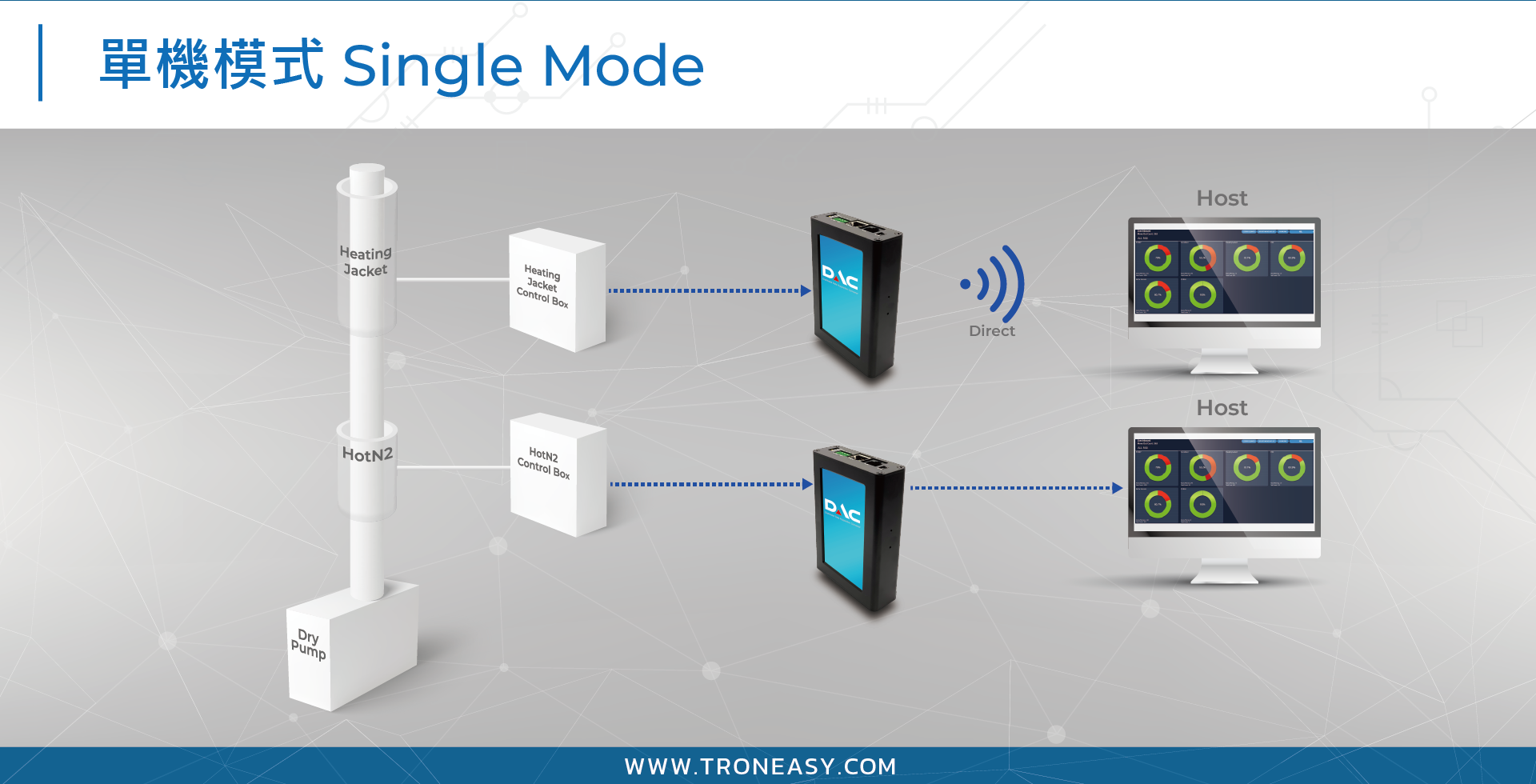

單機模式

Single Mode

適用於獨立機台。
Ideal for standalone units.

Single Mode

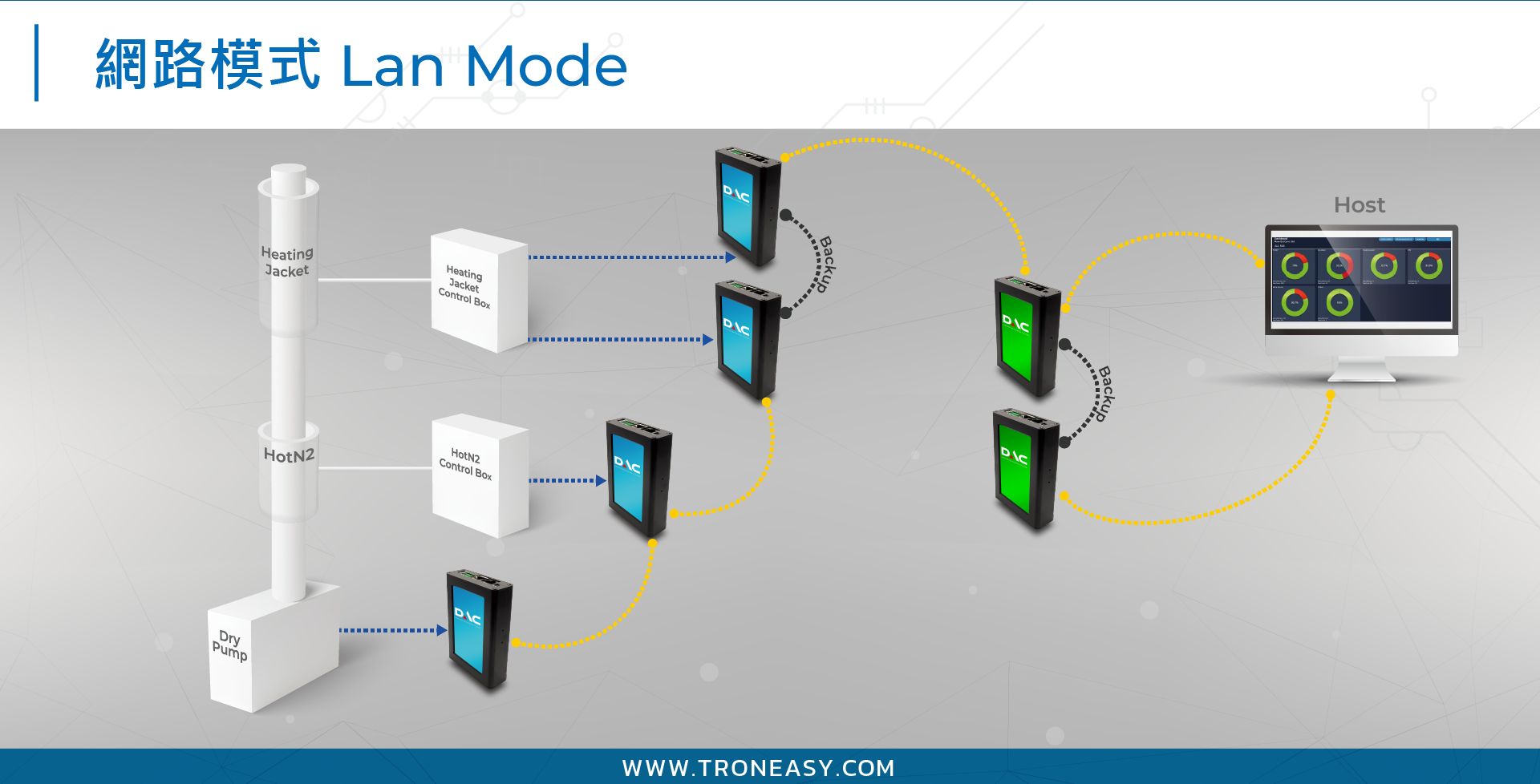

網路模式

LAN Mode

標準工業級乙太網路連接(RJ45)。支援多台串聯,將數據整合至中控系統。
Standard industrial Ethernet (RJ45). Supports multi-device integration for centralized control.

LAN Mode

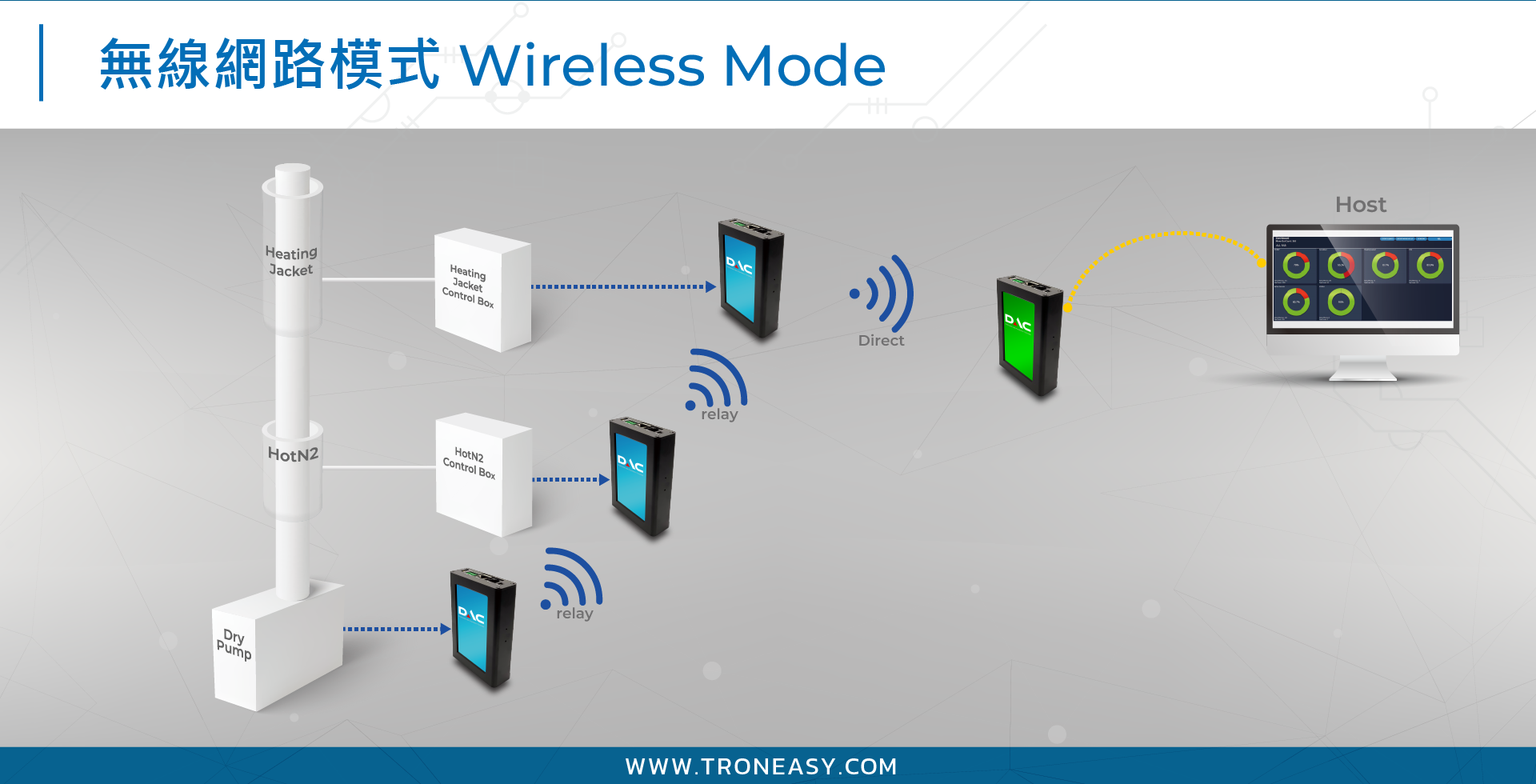

無線網路模式

Wireless Mode

針對佈線困難場景設計。跨越空間限制,將數據安全傳送至雲端。
Designed for difficult cabling scenarios. Overcomes spatial limits to sync data to the cloud.

Wireless Mode

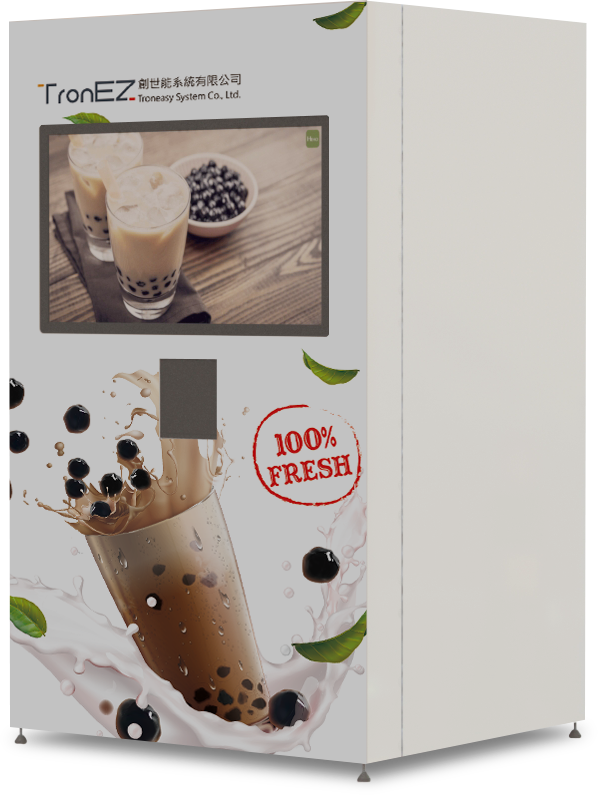

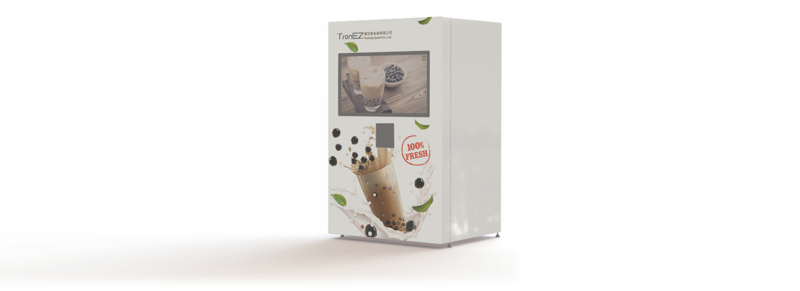

Believer-100

珍珠奶茶全自動販賣機(多媒體銷售平台)

Believer-100

Bubble Milk Tea Auto Vending Machine (Multimedia Sales Platform)

結合多種支付方式與雲端後台管理系統,Believer-100 不僅是自動販賣機,更是強大的多媒體零售終端。
Combining multiple payment methods with a cloud management system, the Believer-100 is a powerful multimedia retail terminal.

支援 24 小時無人自動化作業,提供現調珍珠奶茶的完美口感,實現智慧化營運。
Supports 24/7 unmanned operation, delivering perfect freshly-made bubble tea through smart operation.

多元支付 | Diverse Payment

支援信用卡、行動支付、感應式錢包。
Supports credit cards, mobile pay, and e-wallets.

雲端管理 | Cloud Management

遠端監控物料庫存與機台狀態。
Remote monitoring of inventory and machine status.

多媒體行銷 | Multimedia Marketing

大型觸控螢幕支援影音廣告投放。
Large touch screen for video advertisement broadcasting.
